Material handling equipment
Battery Operated Platform Truck
Material Handling Equipment
| Load capacity | 3000 kg |
| Platform Size (LxB) | 1850x1800x5 mm |
| Platform height | 650 mm |
| Overall Truck size | 3200x1800x1540 mm |
| No. of seats | 02 nos. |
| Seat height from FFL | 1250 mm |
| TR (min) | 3500 mm |
| Wheel types | Solid |
| Wheel size | 535 mm |
| Wheel track and base | 960 x 1830 mm |
| Trolley parking jack | Manual jack (mechanical) |
| Tare weight of Truck | 1200 kg |
| Brake | Hydraulic |
| (F&R) Suspension | Leaf spring and shock absorber |
| Steering | Automotive type |
| Drive motor | DC, S2, 3.6 kW & 36 VDC |
| Power | Battery operated |
| Standard | IS: 10311 latest |
| Battery | Tubular lead acid traction 299AH |
| Warranty | 01 year |
Scissor Lift
| Platform Size (LxB) | 1200x900 mm |
| Load capacity | 500 kg |
| Platform sliding mechanism | Platform projected up to 600 mm |
| Wheel types | Metallic wheel with rubber coating |
| Wheel size | 150 mm |
| Wheel arrangement | Rear fixed, front swivel with handle |
| Trolley parking jack | Manual jack |
| Maximum lift | 8000 mm |
| Minimum height | 1200 mm |
| Operation | With hydraulic power pack |
| Power | 440 VAC 50 Hz |
| Safety | Hose bust valve and check valve |
Pilot Truck
| Platform Size (LxB) | 2500x900 mm |
| Load capacity | 500 kg |
| Wheel types | Nylon castor wheel |
| Wheel size | 100 mm |
| Wheel arrangement | Rear fixed, front swivel with handle |
| Maximum lift | 1000 mm |
| Minimum height | 400 mm |
| Operation | With hydraulic power pack |
| Safety | Hose bust valve and check valve |

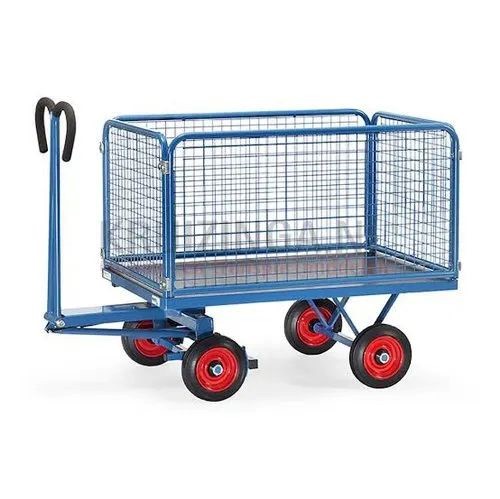

Towable Trolleys
| Size (LxBxH) | 2500x1800x1000 mm |
| Load capacity | 2000 kg |
| Wheel types | Tubeless |
| Wheel size | 350 mm |
| Wheel arrangement | Rear fixed, front swivel with handle |
